Decoilers

ROOFING PRODUCT

ESE Mini Decoiler

3,000 lb max capacity 24" max coil width

Six prong core
Single locking spider system
Friction brakes
Core expands from 15" to 21"
Made in USA
‍

Capacities
- maximum coil width .................. 24"
- maximum outside diameter ...... 34"
- core inside diameter ................. 15" to 21"
- maximum coil weight ................. 3,000 lbs.

‍

Dimensions
- length .......................................... 36"
- length (shaft) .............................. 34"
- width ........................................... 35.5"
- height - top of frame ................. 27"
- height - top of core .................... 30"
- height - top of core expanded ... 32.5"
- weight ........................................... 140 lbs.
- weight (core only) ........................ 66 lbs.

‍

$1,350.00 *all prices subject to change

ROOFING PRODUCT

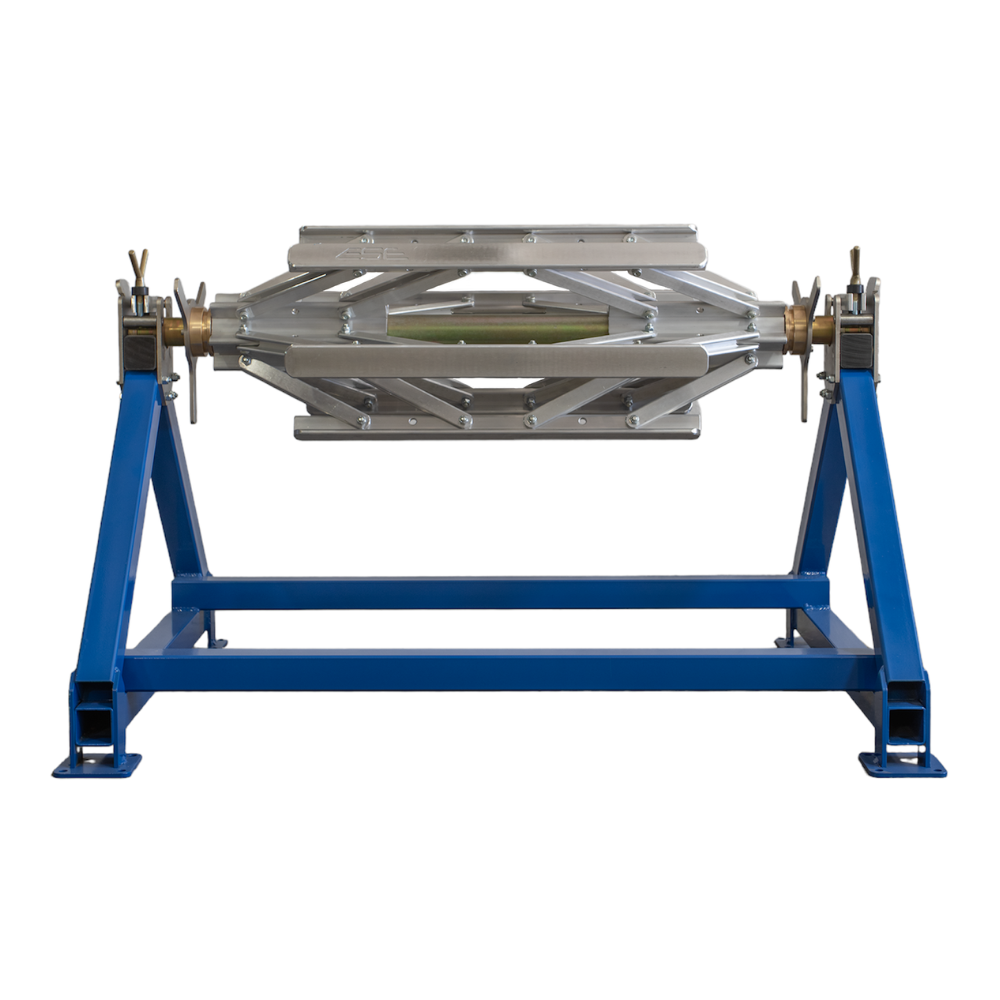

ESE Decoiler - Standard

3,000 lb max capacity 34" max coil width

Six prong core
Dual locking spider system
Friction brakes
Core expands from 15" to 21"
Made in USA
‍

Capacities
- maximum coil width ................... 36"
- maximum outside diameter ....... 34"
- core inside diameter .................. 15" to 21"
- maximum coil weight ................. 3,000 lbs.

‍

Dimensions
- length ......................................... 46"
- length (shaft) ............................. 44"
- width .......................................... 35.5"
- height - top of frame ................. 27"
- height - top of core .................... 30"
- height - top of core expanded .. 32.5"
- weight .......................................... 162 lbs.
- weight (core only) ...................... 83 lbs.

‍

$1,550.00 *all prices subject to change

ROOFING PRODUCT

ESE Decoiler - Heavy Duty

5,000 lb max capacity 34" max coil width

Six prong core
Dual locking spider system
Friction brakes
Core expands from 15" to 21"
Made in USA
‍

Capacities
- maximum coil width ................... 36"
- maximum outside diameter ....... 34"
- core inside diameter ................... 15" to 21"
- maximum coil weight ................... 5,000 lbs.

‍

Dimensions
- length ........................................... 46"
- length (shaft) ............................... 44"
- width ............................................ 35.5"
- height - top of frame ................... 27"
- height - top of core ..................... 30"
- height - top of core expanded ... 32.5"
- weight ........................................... 168 lbs.
- weight (core only) ........................ 90 lbs.

‍

$1,750.00 *all prices subject to change

ROOFING PRODUCT

ESE Extra Wide Decoiler

5,000 lb max capacity 48" max coil width

Six prong core
Dual locking spider system
Friction brakes
Core expands from 15" to 21"
Made in USA
‍

Capacities
- maximum coil width ................... 48"
- maximum outside diameter ....... 34"
- core inside diameter ................... 15" to 21"
- maximum coil weight ................... 5,000 lbs.

‍

Dimensions
- length ............................................ 63"
- length (shaft) ................................ 61"
- width ............................................. 35.5"
- height - top of frame .................... 27"
- height - top of core ....................... 30"
- height - top of core expanded .... 32.5"
- weight .............................................232 lbs.
- weight (core only) ......................... 128 lbs.

‍

$2,000.00 *all prices subject to change
